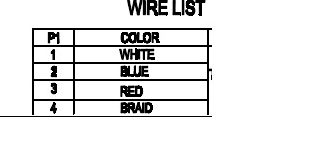

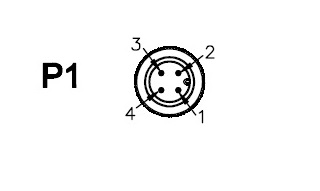

M12 Connector Information

• Related Articles

• Alarm Connection with MFIO

  Wire the ALARM ( C and NO) connections on the MFIO as per the attached diagram. For example, in the attached picture, you can see a connection made from the MFIO onto a 24 V alarm beacon. ​   Once the alarm system is connected - on the Mouldflo ...

• MFIO and Power Connections

  For the MFIO: Red – V+ Black – 0V Blue – RS485_B White – RS485_A   For Power: Please see the white markings on one section of the power cable ( it refers +V) and the pure black ( it refers -V)

• MFTR Software Upgrade Instructions

  Please follow the below mentioned steps to upgrade the Test Rig software:   Press Ctrl+Alt+T  on the keyboard to launch the terminal. Please type the command “Killall -9 Mouldflo” and press “ENTER” on the keyboard. (The Test rig application should ...

• Mouldflo Sensor Maintenance Guide

  Please find attached the Mouldflo Sensor Maintenance Guide

• MFTR: Power Requirements

  The Mouldflo Test Rig has the following power specifications: CEE 230 / 400 VAC , 10A (50 / 60Hz) Note: The pump requires 3-phase, whereas the onboard electronics only require a single phase.
