MFTR: Power Requirements

The Mouldflo Test Rig has the following power specifications:

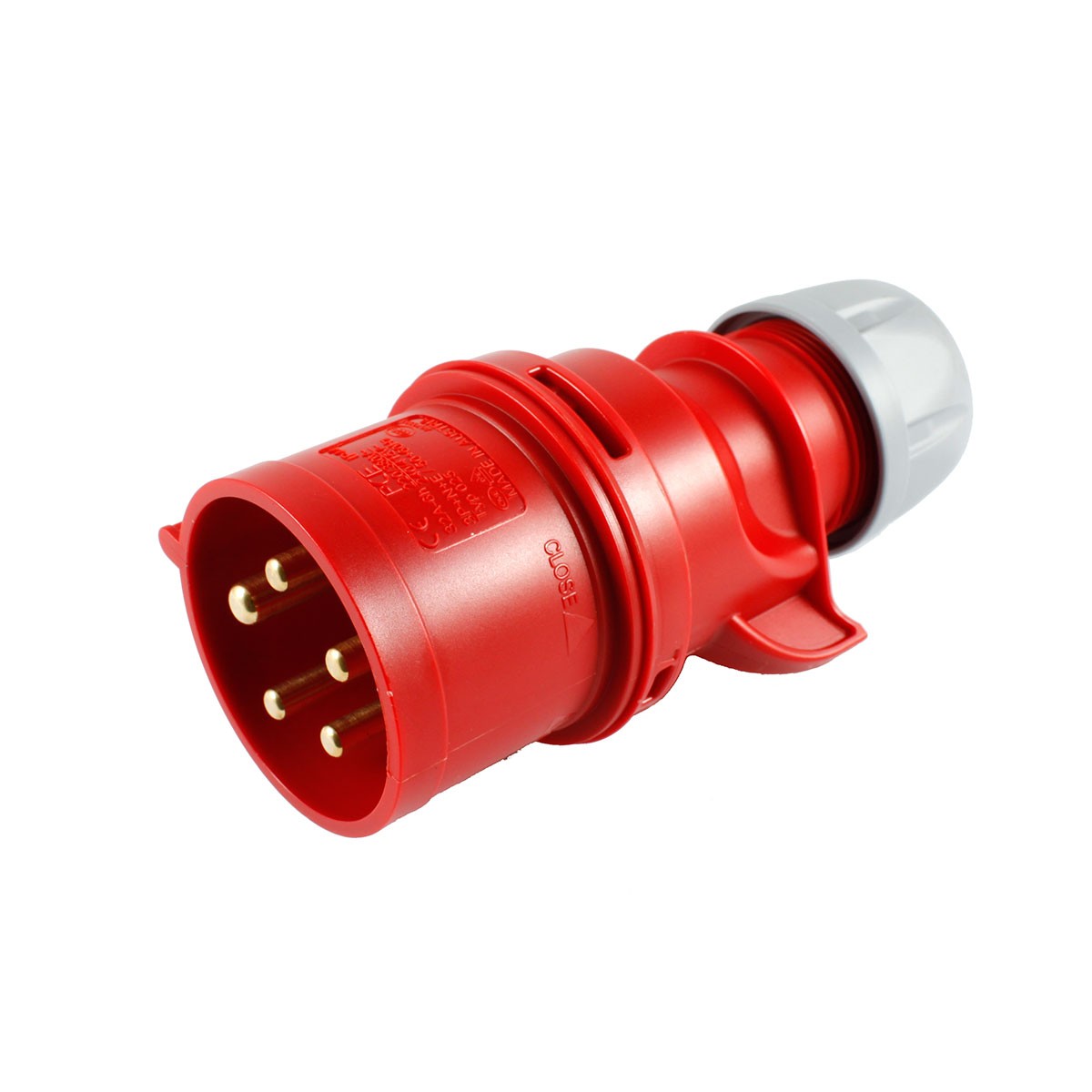

CEE 230 / 400 VAC , 10A (50 / 60Hz)

Note: The pump requires 3-phase, whereas the onboard electronics only require a single phase.
